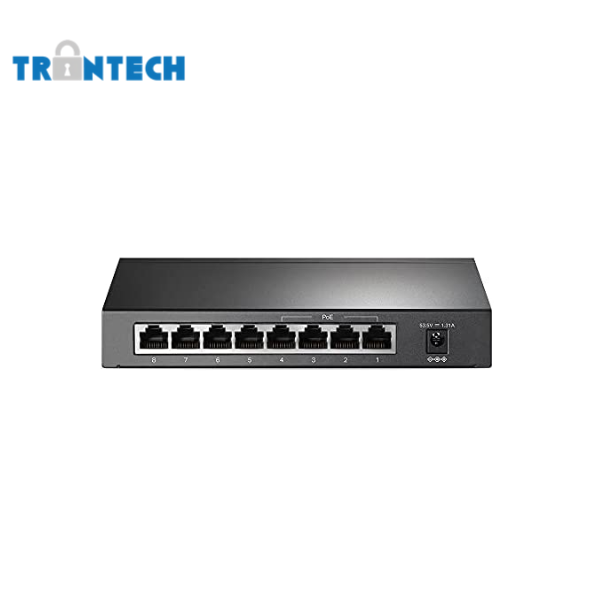

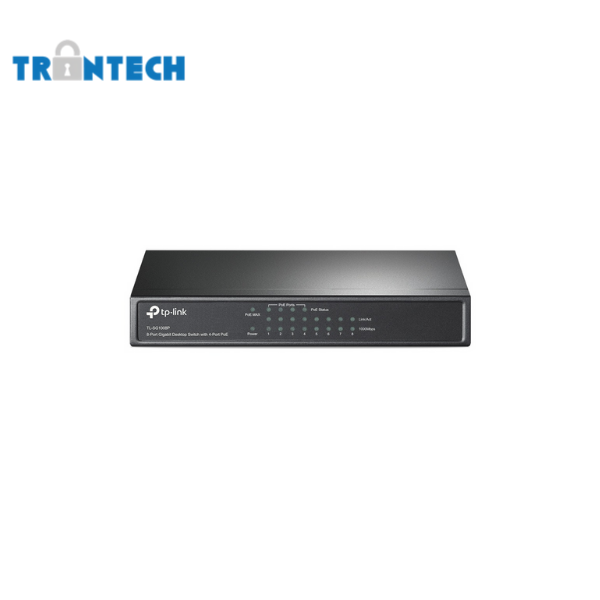

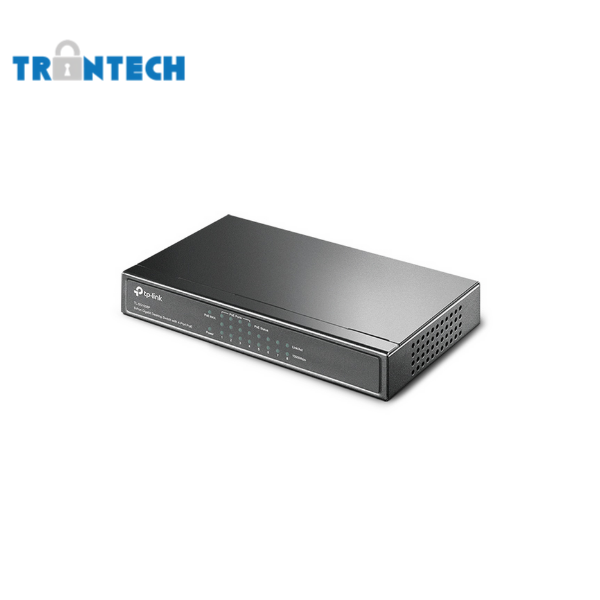

TP-Link 8-Port Gigabit Desktop Switch with 4-Port PoE

TL-SG1008P

TP-Link 8-Port Gigabit Desktop Switch with 4-Port PoE (TL-SG1008P) with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 64 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
When total power consumption exceeds 64 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Features

8 10/100/1000Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
Requires no configuration and installation
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 55W for all PoE ports

SKU: 244814 Category: POE

HARDWARE FEATURES
Interface	• 8× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter(Output: 53.5VDC / 1.31A)
Packet Forwarding Rate	11.904 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 64 W
Mac Address Table	4K
Jumbo Frame	16 KB
Switching Capacity	16 Gbps
Dimensions ( W x D x H )	6.7×3.9×1.1 in (171×98×27 mm)
Max Power Consumption	• 5.39 W (220/50 Hz no PD connected) • 75 W (220/50 Hz with 64 W PD connected)
Max Heat Dissipation	• 18.38 BTU/h (no PD connected) • 225.75 BTU/h (with 64 W PD connected)

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • IGMP Snooping • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control • 802.1p/DSCP QoS

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• TL-SG1008P • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
